Explosion Proof Mini Rotary Evaporator Borosilicate Glass High Safety

Explosion Proof Mini Rotary Evaporator Borosilicate Glass High Safety

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Material:
Customized
Vacuum Degree:
-0.098mpa
Motor Power:
120
Warranty:
12 Months
Process:
Evaporator
After-sales Service Provided:
Online Support
Weight:
Depending
Highlight:

rotary vacuum flash evaporator

,

rotary vacuum film evaporator

,

borosilicate glass vacuum rotary evaporator\

Product Description

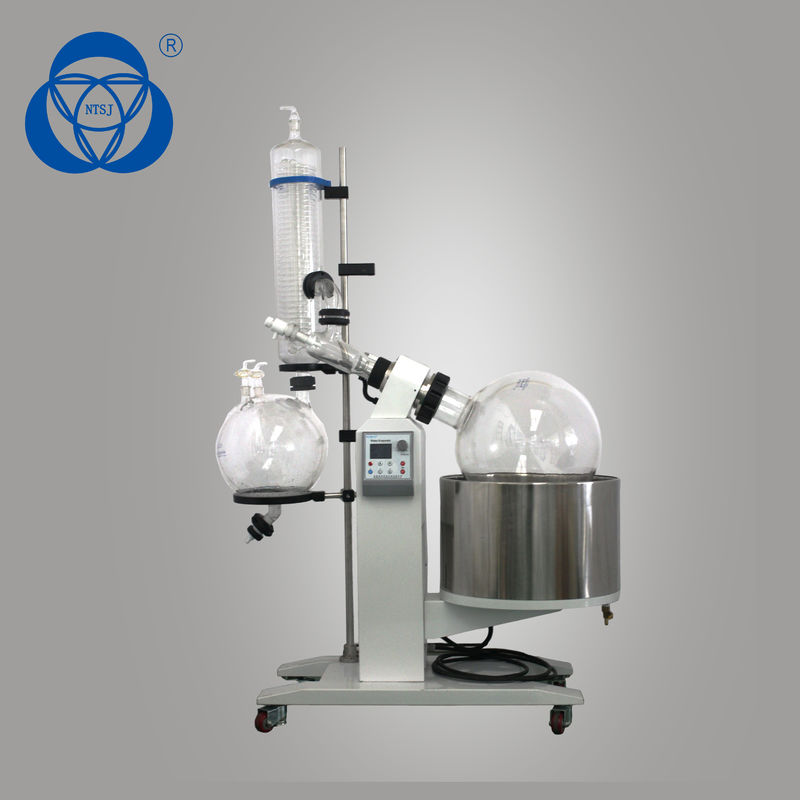

Vacuum Rotary evaporator

The principle is that under the vacuum condition, the constant temperature heating ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.

  It is an evaporating instrument widely used in laboratory.It is suitable for reflux operation, rapid evaporation of solvent, concentration of trace components and reaction processes requiring stirring.

  Especially be suitable for the concentration and purification of biological products which are easy to decompose and denature at high temperature.

  Explosion-proof rotary evaporator uses a explosion-proof motor, that will keep reaction to be safe in the whole process.

Features

• Easy, straight-forward and visual operation with digital speed and temperature display

• 1-way check valve automatically turns off when draining the receiving flask.
• All components making contact with liquids and gases are made of borosilicate glass 3.3 and PTFE.
• Specialized motor provides precise driving for very quiet, vibration-free operation.
• Downward-condensing vacuum connection design ensures safe vacuum operation.
• Modular design (individual rotary and water bath modules) upgrades easily maintenance.




Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220




Explosion Proof Mini Rotary Evaporator Borosilicate Glass High Safety 0



Packing and delivery



Explosion Proof Mini Rotary Evaporator Borosilicate Glass High Safety 1
Shipping
-DHL, UPS, TNT, EMS and so on. Also, you can choose your own shipping agent.



Our factory



Explosion Proof Mini Rotary Evaporator Borosilicate Glass High Safety 2

Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.

Our services

If you have questions of the equipment
Please send us email of the problem. Pictures or a small video will be much better. We will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

We are a professional manufacturer which is specialized in designing, producing and selling.
We have obtained many patents at home and abroad, all of our products is being innovated all the time.
We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
With advanced technology and high-end equipment.we do quality control before shipping to our customers.
Inquiry and consulting support.
