Water Vacuum Industrial Rotary Evaporator Complete Turnkey Solution

Water Vacuum Industrial Rotary Evaporator Complete Turnkey Solution

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Material:
Stainless Steel
Vacuum Degree:
0.098
Certification:
CE,ISO9001
Condition:
New
Dimension(l*w*h):
Capacity
Process:
Evaporator
After-sales Service Provided:
Online Support
Weight:
Depending
High Light:

rotary evaporator distillation

,

rotary vacuum film evaporator

,

lab rotary evaporator 20L

Product Description

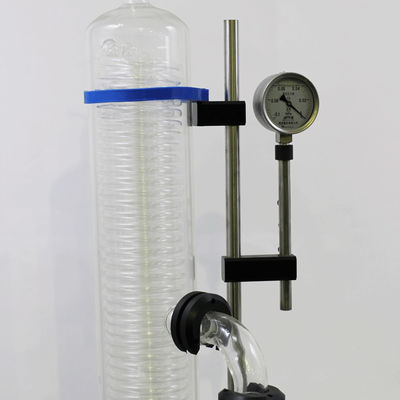

Vacuum Rotary evaporator

Rotary evaporator is suitable for reflux operation, rapid evaporation of solvent, concentration of trace components and reaction processes requiring stirring.The principle is that under the vacuum condition, the constant temperature heats ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.
Rotary evaporator is especially suitable for the concentration and purification of biological products which are easy to decompose and denature at high temperature.



Features

• Explosion-proof rotary evaporator uses a explosion-proof motor, that will keep reaction to be safe in the whole process.
• Adopt advanced frequency converter and electronic speed regulator to ensure the stable working of motor and improve the evaporation and recovery speed.
• Automatic bath lift and vacuum feeding can help to reduce the breakage of rotary flask.
• Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel, appearance is attractive and anti-corrosive.
• Easy auto lift with secure lock for the evaporating flask
• PID temperature controller ensures accurate temperature control is maintained
• Highly Chemical Resistance-All components that make contact with liquids and gases are made of borosilicate glass 3.3 and PTFE.





Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220

Water Vacuum Industrial Rotary Evaporator Complete Turnkey Solution 0
Packing and delivery

-The glass parts will be wrapped with foam material,then put into the carton, all parts will be packed into wooden case finally; Customized packaging can be available.
-The damage caused by the transportation problem shall be born by the seller.
-We can ship them by International Express such as DHL, UPS, TNT, EMS and so on, You can choose to use your own forwarder.



Water Vacuum Industrial Rotary Evaporator Complete Turnkey Solution 1

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.

Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Advantage of us is customize according to client need.

We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.

Water Vacuum Industrial Rotary Evaporator Complete Turnkey Solution 2



Our services

1.The quantity

Any quantity is acceptable for your order. And the price is negotiable for large quantity.

2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
