MOQ: | 1 set |
Price: | Negotiable |
Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
Delivery Period: | within 5days after payemnt received |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 500 sets/momth |
In chemical engineering, a jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be also used in jacketed vessels to improve the homogeneity of the fluid properties (such as temperature or concentration)

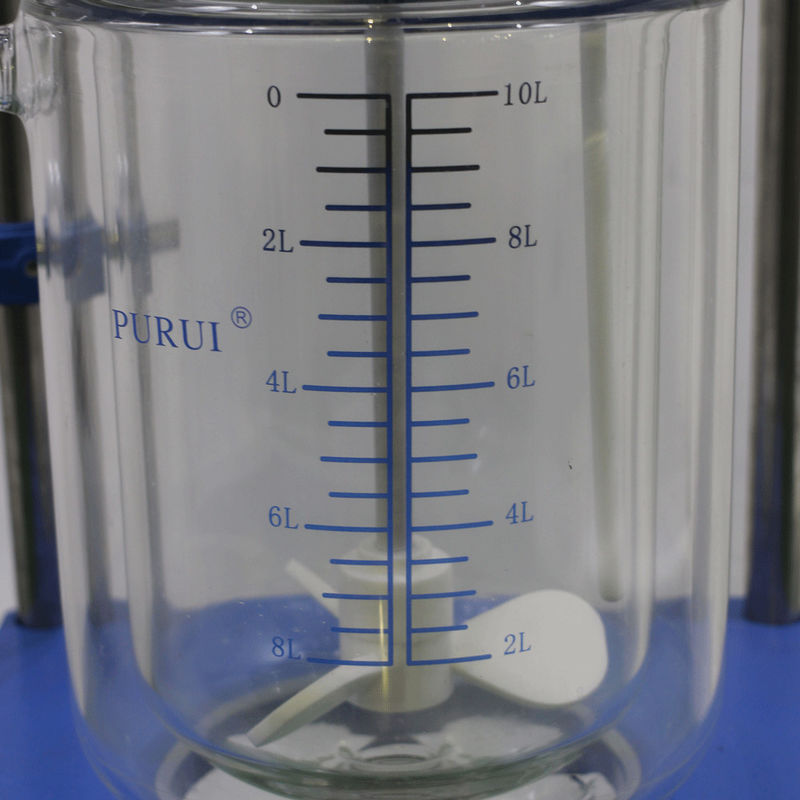

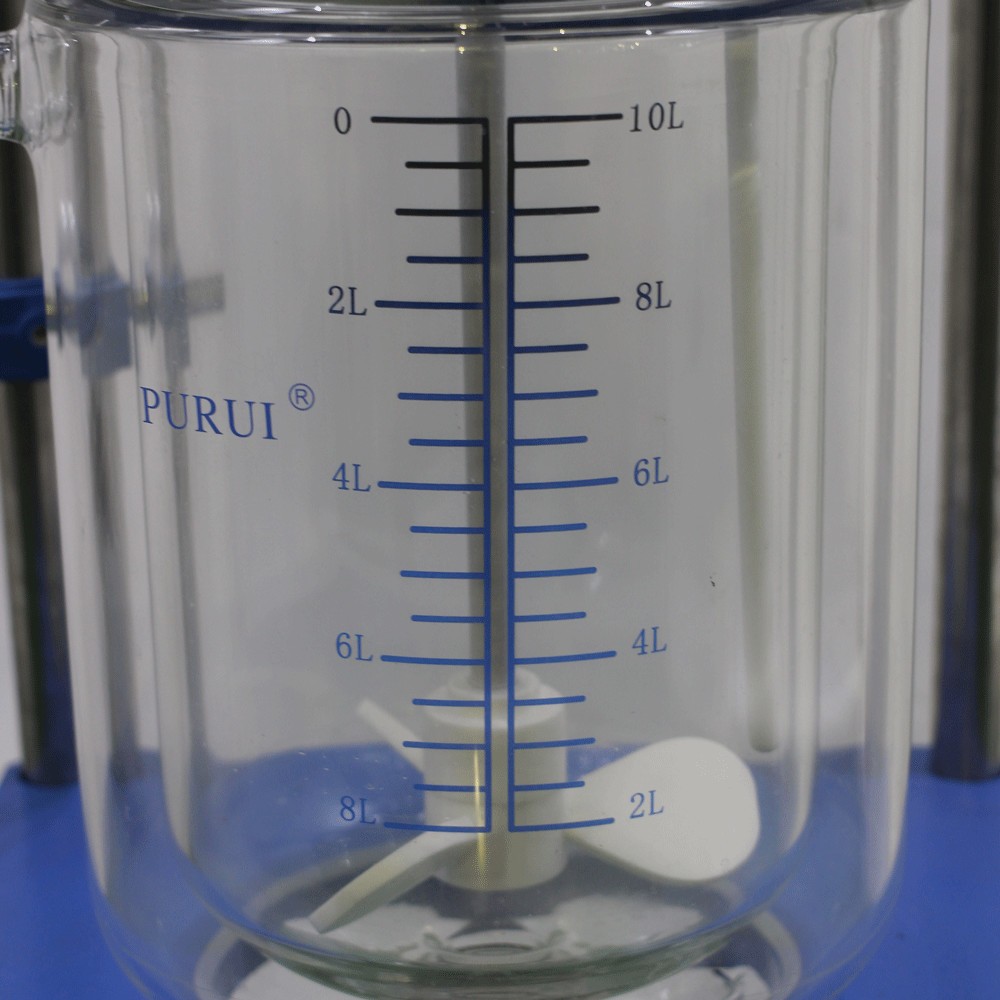

The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
① Full set of glass part is produced by G3.3 borosilicate glass, owning excellent chemical and physical properties.
② Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
③ Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
Stirring blades
The blades are available in PTFE,
stainless steel and can be clamped on the stirring shaft.
Vacuum Jacket
an additional vacuum jacket on the vessel can provide thermal insulation, get rid of frost and keep clear vision inside the vessel
Thermo-fluid port
We offer thermo- fluid ports in different forms (glass barb,stainless steel barb, flange, NPT thread, etc).
- Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
- Both neutral and customized packaging can be available.
- By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.
Customizable
For a lab equipment, the most valuable is the quality configuration and after sales support!
1.All glassware test by china authorities certification, our products get Green product certification,China famous product certification and ISO9001 quality management system certification.
2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment. to guarantee each machine working perfect before delivery! Mini 2l rotary evaporator flask for pyrolysis.
3.Each machine will deliver with User manual, machine label, Serier No. to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time.
