| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 500 sets/momth |

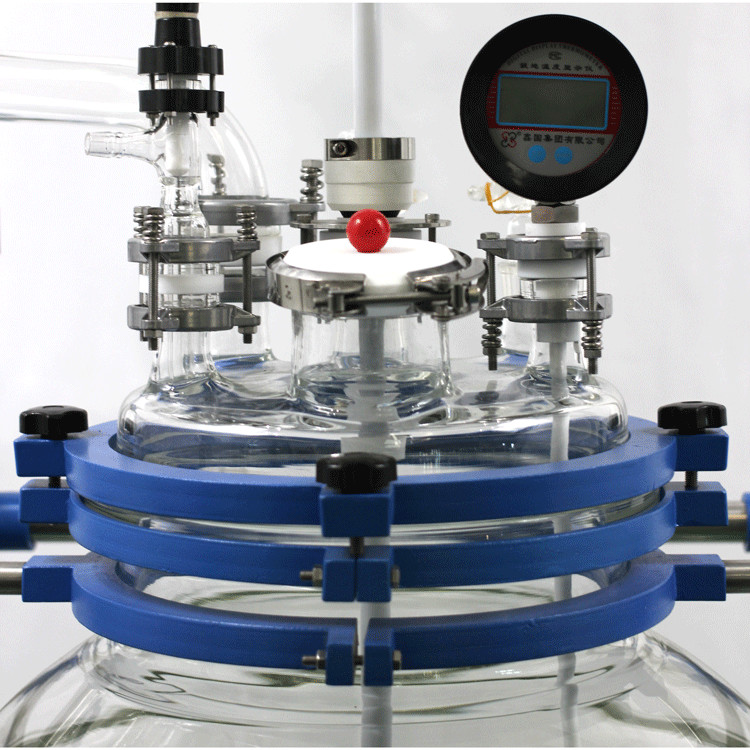

Dual jacketed glass reactors are designed for synthetic reactions of different types of materials while under a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Explosion proof display converter
This series of products adopts explosion-proof motor, explosion-proof frequency converter and explosion-proof intelligent temperature control box.Explosion proof motor, stable operation, big torque, no spark, long service life.
The speed can be set by speed, screw and torsion, which is convenient and intuitive. Besides, the temperature measuring probe in the kettle can be used to display the temperature in the kettle.
PTFE material parts
Stainless steel stirring bar is used for covering PTFE. It is suitable for mixing in various solvents without pollution and corrosion resistance.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.
We are a professional supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities.
Customizable
We are a professional manufacturer which is specialized in designing, producing and selling.
We have obtained many patents at home and abroad, all of our products is being innovated all the time.
We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
With advanced technology and high-end equipment.we do quality control before shipping to our customers.
Training how to install the machine and how to operate"
Efficient and Safe Transportation
We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT to provide various sea shipping and air shipping options.After we received the payment, we can ship them within 3 days.
Video
Video
Video
|
|
