Constant Pressure Glass Chemical Reactor Multi Neck Flange With Ceramic Mechanical Seal
  • name
  • name
  • name
  • name
  • name

Constant Pressure Glass Chemical Reactor Multi Neck Flange With Ceramic Mechanical Seal

MOQ: 1 SET
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 5 working after receive your payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 1000 sets per month
Details Information
Product Description
Detail Information
Place of Origin
NANTONG,CHINA
Brand Name
NTSJ
Certification
ISO9001
Model Number
FPGR-10
Frame Part:
SS316 Or SS304 Spray Teflon
Material:
3.3 Borosilicate Glass
Application:
For Laboratory
Stock:
In Stock
Size:
Customers' Requests
Motor Power:
180W
Explosion Poof Or Not:
Yes
Voltage:
220V
Power Source:
Electric
Highlight:

jacketed glass vessel

,

double layer glass reactor

Product Description

Glass Reactor

Different cold and hot circulating fluid (hot water / hot oil / freezing liquid) can be put into the layer of double glass reactor. In the sealed glass container, the reactants are stirred and distilled at normal pressure or negative pressure and can be used for various biochemical synthesis reactions under constant temperature conditions, and can also be reflux or distilled at different temperatures.The reaction kettle covers different openings to realize the different effects of feeding, measuring temperature, recovering distillates and so on.

Main features

Customizable

φ265mm multi-neck flange type reactor lid is made of 3.3 high borosilicate glass, detailed distributions and functions are as bellows:



1) 50# flange type stirring neck in middle, equipped with ceramic mechanical seal, resist to high and low temperature and corrosion, ensure it can be highly accurately sealed in poor conditions. φ16mm stainless steel stirring rod which is covered with PTFE outside, and paddle is fully made of PTFE, which is suitable for mixing of all kinds of materials.



2) DN40 flange type vapor neck in the left rear is equipped with coil condenser, water separator and 3L receiving bottle for reflux and distillation.



10L jacketed glass reactor, the vessel size is 290*450mm, which is made of 3.3 high borosilicate glass can resist temperature from -100℃to +300℃ and afford 100℃ temperature difference, DN25 flange type of inlet and outlet one each for conducting heat medium. DN50 discharging valve is used for bottom discharge, ensure there is no dead angles and complete discharge. Jacket pressure resistance≤0.05mpa, vacuum degree＞-0.098mpa.




Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200

Product Details

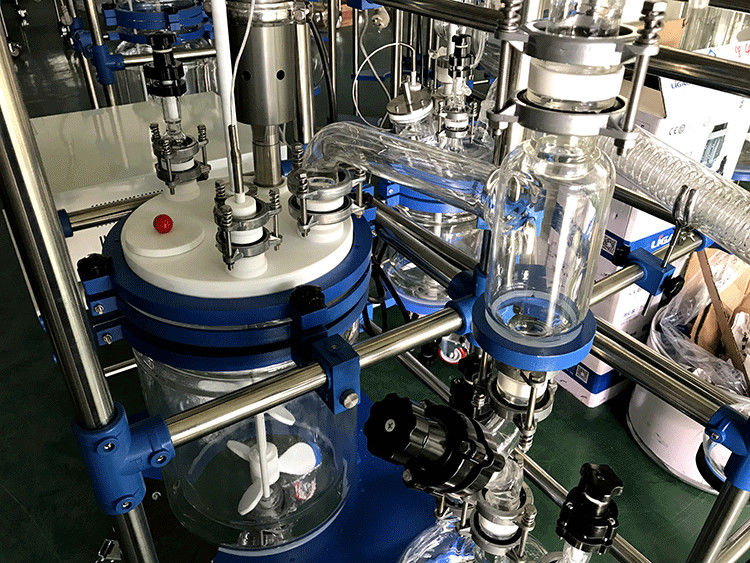

Constant Pressure Glass Chemical Reactor Multi Neck Flange With Ceramic Mechanical Seal 0

Constant Pressure Glass Chemical Reactor Multi Neck Flange With Ceramic Mechanical Seal 1



Packing and delivery

Strict packing process to ensure the safety and completeness of the goods.


We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.


We can also arrange global shipment as clients' requirements.



Constant Pressure Glass Chemical Reactor Multi Neck Flange With Ceramic Mechanical Seal 2

Our factory

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai.



Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

Constant Pressure Glass Chemical Reactor Multi Neck Flange With Ceramic Mechanical Seal 3



Our service



1.Could you do customized for us?

We can provide all kinds of customized service.

2.Are you manufacturer?

Yes. Sincerely welcome to visit our factory any time.

3.Are you trading company or manufacturer?

We are professional manufacturer and we have our own factory.
