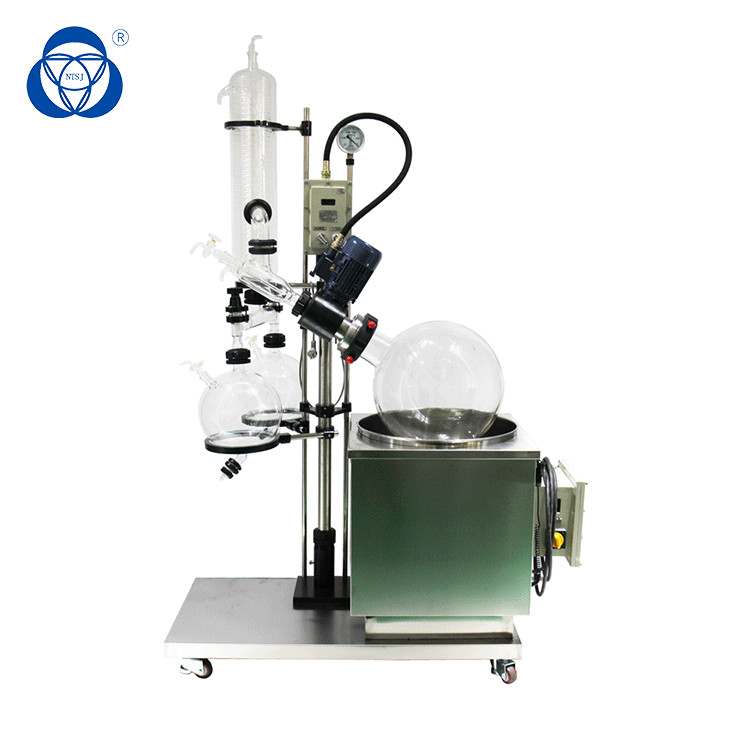

10L Rotary Vacuum Rotovap Evaporator Customized For Essential Oil Extracting

10L Rotary Vacuum Rotovap Evaporator Customized For Essential Oil Extracting

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
NPR-10
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Power Source:
Electric
Dimension(l*w*h):
Capacity 1L-100L
Warranty:
12 Months
Process:
Vacuum Distillation
Vacuum Degree:
0.096Mpa
Weight:
Depending
Rotary Flask:
Customized Size
High Light:

Customized rotary vacuum Rotovap evaporator

,

10L Rotary Vacuum Rotovap Evaporator

,

rotary vacuum evaporator For Oil Extracting

Product Description

Vacuum Rotary evaporator

Ex-proof rotary evaporator adopts ex-proof electric apparatus to motor and control parts, which is applicable for the places need ex-proof.Its working principle is to rotate the glass flask which filled with materials under constant temperature heating, and the system connect to the negative pressure to low the boiling point, then liquid forms a film and evaporates,at last it recovers the menstruum by the glass coil condenser and receiving flask. It is specially applicable for the concentration, crystallization, separation and menstruum recovery of heat sensitive materials.

Features


Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
NPR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
NPR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
NPR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
NPR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
NPR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220


Rotary evaporator’s working principle is to rotate the glass flask which filled with materials under constant temperature heating, and the system connect to the negative pressure to low the boiling point, then liquid forms a film and evaporates,at last it recovers the menstruum by the glass coil condenser and receiving flask. It is specially applicable for the concentration, crystallization, separation and menstruum recovery of heat sensitive materials.
Adopt advanced frequency conversion and electronic speed regulation to ensure the stable working of motor and improve the evaporation and recovery rate.
Bath can be lift and vacuum feeding reduced the breakage of rotating glass flask. When evaporation under low boiling point, receiving bottle can be immersed into the ice bath to reduce the second evaporation.

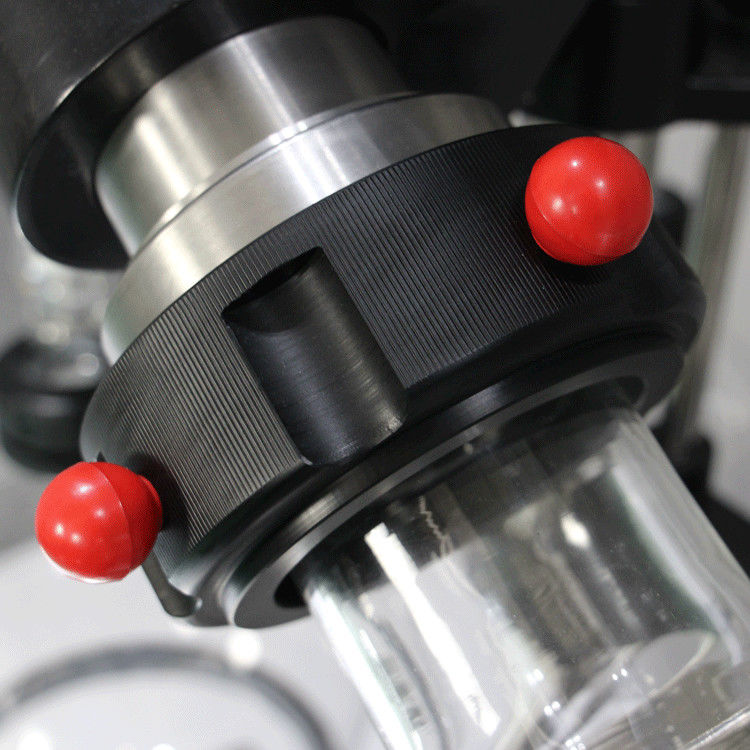

Receiving flask use ball-milling mouth for connection, can remove easily and reach high performance sealing.

10L Rotary Vacuum Rotovap Evaporator Customized For Essential Oil Extracting 0

Packing and delivery



10L Rotary Vacuum Rotovap Evaporator Customized For Essential Oil Extracting 1
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.

Our factory


10L Rotary Vacuum Rotovap Evaporator Customized For Essential Oil Extracting 2
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.


FAQ

Q1: Can you provide OEM or ODM service?
A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.
Q2: What's your MOQ?
A2: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q3: What is your terms of delivery?
A3: FOB/ CIF /Door to Door/By air as you like.
